Holux X3

AUTOMATIC
SLIDING DOORS

Germany Holux Automatic Sliding Sensor Door

Holux X3

Holux X3 is an excellent choice for places where average-sized doors with normal glass will do. This model stands a maximum load of 200 kg with considerable ease.

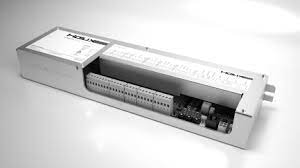

Control Unit

Producing this controller, we have taken care of all research, design and production stages in Germany and we have thoroughly followed all EU and German DIN norms, such as machinery directives and electromagnetic compatibility (EMC) regulations

Made in Germany, their robust motor easily handles high traffic for an inde- finite time. It assures durability and promotes maximum efficiency. Holux Series brushed DC motor works so smoothly that their noise is literally like an almost inaudible whisper!

You see your Holux doors open welcomingly although you do not hear them! Our unbelievably smooth entrance solution employs a detachable aluminum track profile with a rubber profile to reduce the noise to no more than a muffle.

Catalog

Holux X3

Download

	X3
operator height	120 mm
operator depth	150 mm
gear motor power	50W
max. Leaf weight	1 x 150 kg / 2 x 100 kg
track profile	Detachable aluminum
input power	230V AC +-10%, 50/60 Hz
hold-open time (adjustable)	0 – 30 s
opening speed (adjustable)	100 – 550 mm/s
closing Speed (adjustable)	100 – 500 mm/s
ambient temperature	-15 to +50°C
protection class	IP20

operator height

120 mm

operator depth

150 mm

gear motor power

50W

max. Leaf weight

1 x 150 kg / 2 x 100 kg

track profile

Detachable aluminum

input power

230V AC +-10%, 50/60 Hz

hold-open time (adjustable)

0 – 30 s

opening speed (adjustable)

100 – 550 mm/s

closing Speed (adjustable)

100 – 500 mm/s

ambient temperature

-15 to +50°C

protection class

IP20
